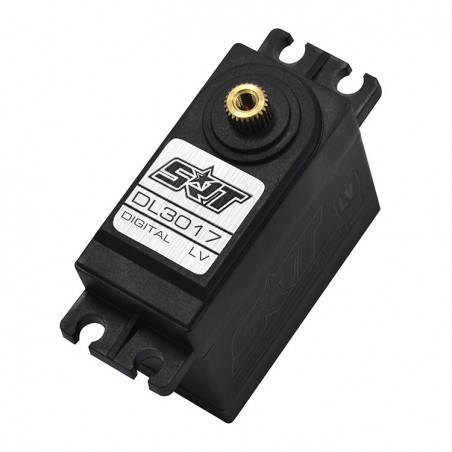

Servo Coreless SRT DL3017 LV 17kg - 0.15seg
Características:
- Voltaje: 4.8v - 6v
- Potencia (Kg/cm): 15.5kgs - 17 kgs
- Velocidad (seg/60): 0.17seg - 0.15seg
- Peso (gramos): 63gr
Ideal para Buggy 1/10 y Buggy 1/8
PRODUCT SPECIFICATIONS:
- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Titanium & Copper
- Control system: pulse width control
- Working frequence: 1520μs / 330hz
- Operating voltage: dc4.8-6.0v
- Operating temperature range: -10 to + 60 degree
- Operating speed (4.8v): 0.17 sec/60 degrees at no load
- Operating speed (6.0v): 0.15 sec/60 degrees at no load
- Stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
- Stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
- Potentiometer drive: direct drive
- Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- Weight: 63.0g (2.22 oz)
- Connector wire length: jr 250 mm
| Item no | 4.8V | 6.0V | 7.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| DL3017 | 0.17 | 15.5/215.3 | 0.15 | 17.0/236.1 | N/A | N/A | Copper | DC | plastic | 40.7*20.5*39.5 | 63.0 |
