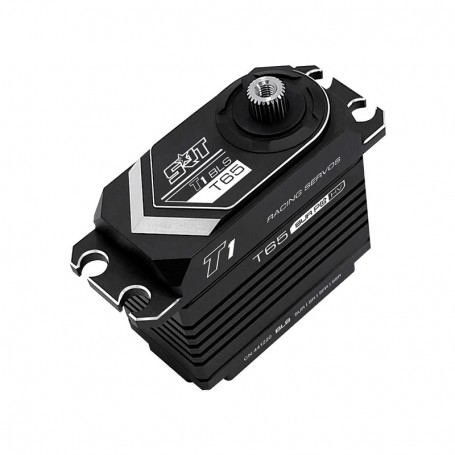

Servo SRT T65 HV Brushless 45kg 0.074S Caja Aluminio
Caracteristicas principales:
- Ideal para 1/8 y 1/5 Off Road y On Road.
- Superior Holding Torque.
- Incredible efficiency and low power consumption.
-Standard dimension make it perfect for vehicles that can benefit from a high quality servo.
- CNC Machined aluminum case for exceptional cooling.
-Programmable High torque Brushless servo.
- SSR mode compatible.
- 25T output shaft.
- 2 μsec Dead Band.
Especificaciones:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Steel
- Control system: pulse width control
- Working frequence: 1520μs / 330hz
- Operating voltage: dc6.0-8.4v
- Operating temperature range: -10 to + 60 degree
- Operating speed (6.0v): 0.092 sec/60 degrees at no load
- Operating speed (7.4v): 0.074 sec/60 degrees at no load
- Operating speed (8.4v): 0.065 sec/60 degrees at no load
- Stall torque (6.0v): 39.0kg.cm
- Stall torque (7.4v): 45.0kg.cm
- Stall torque (8.4v): 55.0kg.cm
- Potentiometer drive: direct drive
- Dimensions: 40.7x20.5x39.0 mm
- Weight: 83.0g
- Connector wire length: jr 300 mm
