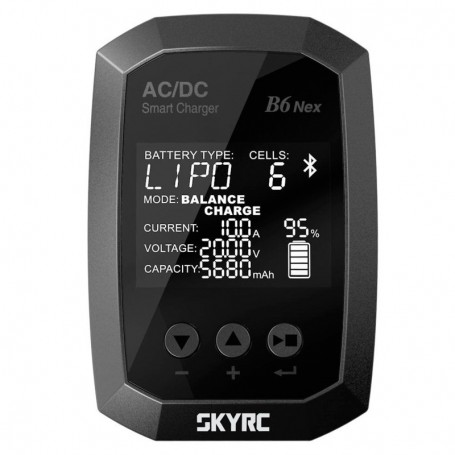

Cargador SkyRC B6 NEX NiMh 1-15S LiPo 1-6S 10A 200W
Basándose en el éxito de nuestro icónico y legendario iMax B6, el SkyRC B6 Nex, es una solución de alto rendimiento diseñada para aficionados.
Con la doble entrada de alimentación AC/DC, B6 Nex puede cargar las baterías Li-ion o LiPo de 1-6 celdas a una corriente de carga máxima de 10A. El Bluetooth 5.0 integrado permite la conectividad del B6 Nex con smartphones.
La aplicación puede enviar notificaciones recordando a los usuarios que la carga o descarga se ha completado o que hay una actualización de firmware. Con B6 Nex, la carga se convierte en una experiencia más rápida y cómoda.
B6 Nex Features:
- LiHV Battery Mode
- Battery Voltage Meter
- AC/DC Input
- Program Data Store/Load
- Bluetooth 5.0
- Max 200W
- XT60 Charge Port
- Terminal Voltage Control
Small in size, Big on power
Thanks to the lightweight structure and optimized firmware, B6 Nex can fit into your pocket. The maximum power of B6 Nex can reach up to 200W.
On the cutting edge with GaN Power
By replacing silicon with gallium nitride, we’ve been able to implement our proprietary charging algorithm and optimal thermal dissipation technique to shrink its size, minimize the temperature rise, delivers more power, further than ever before! Charging is a breeze!
Stunning VA display: everything at a glance
Menu navigation is made easy with the intuitive three-button control interface.
With the stunning backlit 2.4-inch VA screen, large viewing angle, high WBC, rapid response, all information is clear at a glance
AC/DC Dual Power Input
B6 Nex comes with both AC and DC power input, which can meet you on power supply in different circumstances.
AC input (100-240V):
- B6 Nex can deliver is 50W
DC input (10-30V):
- B6 Nex can deliver up to 200W
Multi-purpose for Most Battery Chemistries
The juice box comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid).
Scan to go. Charge on the go.
A unique feature of the B6 Nex is SCAN TO GO (automatically charging system): with the SkyCharger app, a unique QR code sticker can be printed and pasted on the battery. Since all the essential information is stored in the QR code, all you need to do is to scan the QR code, and the charge or discharge process will start automatically.
Adjustable Cut-off Voltage
You can set charging cut-off voltage according to your needs. Furthermore, B6 Nex can memorize the last setting parameters (for professional players only).
Smart & Efficient Cooling
Temperature-controlled 12000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, cooling the unit down.
We are Certified, We are Qualified!
B6 Nex comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.
A new generation of Bluetooth technology. Faster and more stable connection
B6 NEX has a built-in Bluetooth 5.0 chip which data transmission rate is 2 times higher than that of Bluetooth 4.0, and the connection is faster and more stable.
Free App:
Smart Phone Control (both iOS and Android) The free SkyCharger App unleashes tons of features and advanced settings, which tremendously expands the user experience of B6 Nex.
Wireless firmware upgrade
Through the smart app, the charger can be quickly upgraded wirelessly. There is no need to buy an expensive legacy data cable for firmware upgrade through a computer. The firmware upgrade is made easy with the smartphone.
Prompt push notifications
When charging or discharging is completed, the app automatically pushes to remind the user that the process is completed. The user will get a push notification whenever there is a software upgrade.
Dual Power Input
With dual AC/DC power input, this charger is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries. Protection is built-in such as high/low input voltage, and input/output reverse, reverse polarity protection.
Specifications:
- Case Material: Plastic
- Case Size: 112x75x38mm
- Weight: 237.7g
- External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input, AC Input
- Buttons: Increase Button, Decrease Button, Start/Stop Button
- DC Input: 10-30V
- DC Charge: 200W
- DC Discharge: 10W
- AC Input: 100-240V (50-60HZ)
- AC Charge: 50W
- AC Discharge: 10W
Battery Types/Cells:
- LiPo/LiIon/LiFe/LiHV: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 1-10S(2-20V)
Battery Capacity Range:
- NiMH/NiCd: 100-50000mAh
- LiPo/LiIon/LiFe/LiHV: 100-50000mAh
- Pb: 100-50000mAh
Charge Voltage:
- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- Pb: 2.4V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell- AGM/COLD: 2.45V/cell
Discharge Cut-off Voltage:
- NiMH/NiCd: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiFe: 2.6-2.9V/cell
- Pb: 1.8V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
- Charge Current: 0.1A-10.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 1-6 cells
- Balance Current: 1000mA/cell Max
- Safety Timer: 1-720minutes off
Charge Method:
- CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Bluetooth connection:
- Bluetooth 5.0
- APP support operation
- Charge and discharge complete push notifications
- Upgrades
Working and Storage:
- Operating temperature: 0º-40º
- Working humidity: 0%-75%
- Storage temperature: -10º-70º
- Storage humidity: 0%-75%
