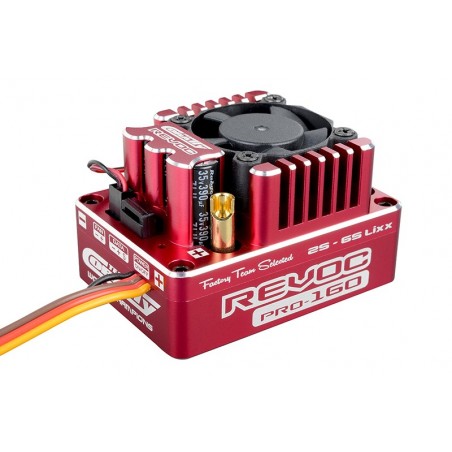

Team Corally ESC Revoc PRO 160A for Competition
zoom_out_map
chevron_left chevron_right

Team Corally ESC Revoc PRO 160A for Competition

Power Specs:
Application: 1/8 Off-Road - 1/8 On-Road
Cont. Current (A): 160A
Burst (A): 900A
Nr of Li-xx Cells: 2-6S
BEC: 6V 5A
Motor Type: Sensored - Sensorless
Motor Limits:
2S - 4S
=< 3000 KV o 4-6 Poles
2S - 6S
=< 2200 KV o 2-4 Poles
Resistance: 0.00020 ohm
Dimensions: 58x42x36mm
Weight: 122g

€174.90 (tax incl.) €144.55 (tax excl.)
5 1
5 5
Tax included
check In Stock
Security policy.
Delivery policy.
Return policy.

The Team Corally REVOC PRO electronic speed controller for sensored and sensorless motors are being fine tuned for the today's high power brushless motors. Everything can be set-up on these controllers to provide you the best functionality and performance.
The REVOC PRO manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimised performance. These controllers give the competition racer what he needs. You will experience the best controllability of your RC car, no matter you use it in a on-road or off-road car.

Features:

o For sensored and sensorless motors
o Manufactured with the highest grade components
o Ultra compact design
o Aluminum case for improved heat dissipation
o Waterproof power switch
o Advanced boost - turbo timing system for improved acceleration performance
o Enhanced throttle - brake control function.
o 10 programmed profiles can be stored in the ESC
o High power 5A BEC
o Powerful TC Link software to test motor timing and advise the best ESC timing setting

Programming Features:

General Settings
o Running Mode
o Cut-off Voltage
o Overheat protection
o Motor Rotation
o Reverse Speed

Throttle Control
o Dead Band
o Punch Rate SW- Point
o Punch Rate 1
o Punch Rate 2
o Throttle Curve

Brake Control
o Initial Brake
o Drag Brake
o Brake Strength
o Brake Rate Control
o Brake Curve

Turbo Timing
o Turbo Timing
o Turbo Delay
o Turbo Slope

REVOC160A
