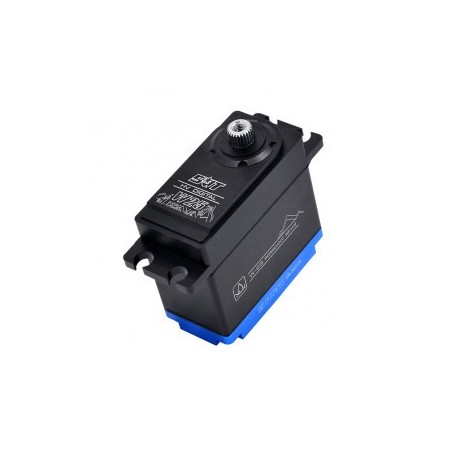

SRT W25 HV 1/8 Crawler Traxxas 25Kg 0.14s. Digital Waterproof Servo
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V.
Application :
1/10 on-road, 1/10 off-road, 1/8 on-road, 1/8 off-road as well as large scale airplanes and jets & electric boat
KEY FEATURES
- Ideal for 1/10 on road and 1/8 off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 23.0kg.cm (319.4 oz/in)
stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.6 mm /1.6x0.8x1.52 in
weight: 72.0g (2.54 oz)
connector wire length: jr 360 mm
