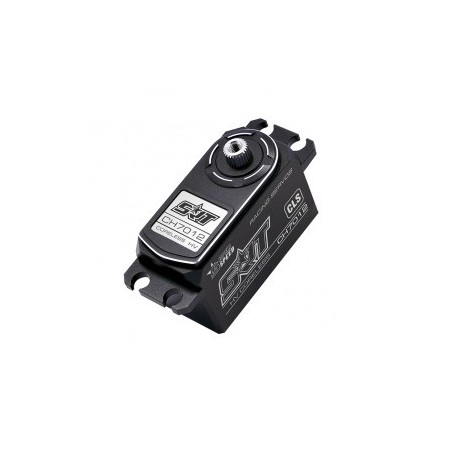

SRT CH7012 1/10 Metal Case 12Kg 0.057s. On-Road HV Servo
Application :
1/10 on-road, 1/10 off-road as well as large scale airplanes and jets
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.057 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (124.9 oz/in)
stall torque (7.4v): 11.0kg.cm (152.8 oz/in)
stall torque (8.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
KEY FEATURES
- Ideal for 1/10 on road scale applications, as well as large scale airplanes and jets
- incredible efficiency and low power consumption
- Titanium & Alu gears for precision and durability
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminium case for exceptional cooling
- HD 4096 Resolution
- 2 μsec Dead Band
- Superior Holding Torque
