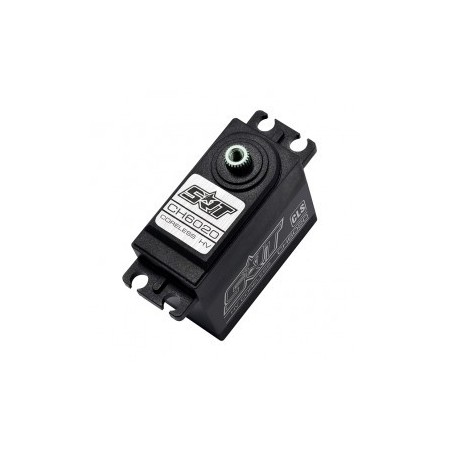

SRT CH6020 1/8 HV Semi-Metal Case 20Kg 0.09s. Coreless Servo
KEY FEATURES
- Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
- incredible efficiency and low power consumption
- 2 μsec Dead Band
Application:
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off-road & 600 700/ Helicopter
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
