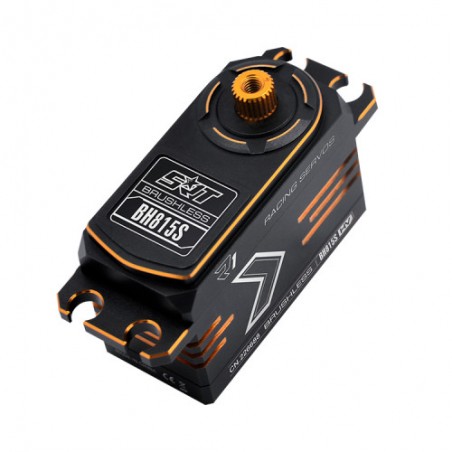

BH815S 1/10 On-Road HV Low Profile 15Kg 0.05s. Brushless Servo
Main features:
- Unique Mechanic Design
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- SSR mode compatible
- 2 μsec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty
Application:
1/10 On-road & 1/8 On-road
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.065 sec/60 deg.
Operating speed (7.4v): 0.055 sec/60 deg.
Operating speed (8.4v): 0.050 sec/60 deg.
Stall torque (6.0v): 10.0kg.cm
Stall torque (7.4v): 13.0kg.cm
Stall torque (8.4v): 15.0kg.cm
Potentiometer drive: direct drive
Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
Weight: 52.0g (1.83 oz)
Connector wire length: jr 180 mm
