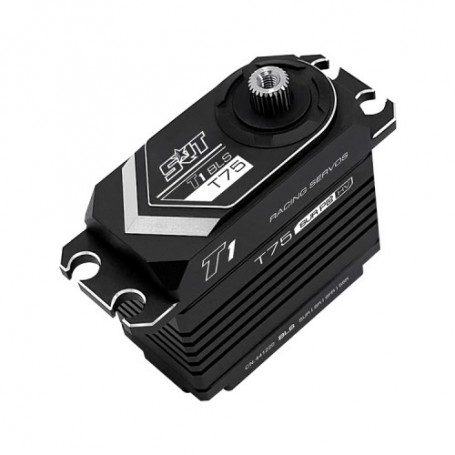

Servo SRT T75 HV Brushless 60kg 0.14S Aluminum Case
Key features:
Ideal for 1/8 on road and 1/5 off road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
Programmable High torque Brushless servo
SSR mode compatible
25T output shaft
2 μsec Dead Band
1-Year Limited Warranty
Application:
1/8 and 1/5 off-road and on-road
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.16 sec/60 degrees at no load
Operating speed (7.4v): 0.14 sec/60 degrees at no load
Operating speed (8.4v): 0.12 sec/60 degrees at no load
Stall torque (6.0v): 55.0kg.cm
Stall torque (7.4v): 60.0kg.cm
Stall torque (8.4v): 70.0kg.cm
Potentiometer drive: direct drive
Dimensions: 40.7 x 20.5 x 39.0 mm
Weight: 83.0g
Connector wire length: jr 300 mm
