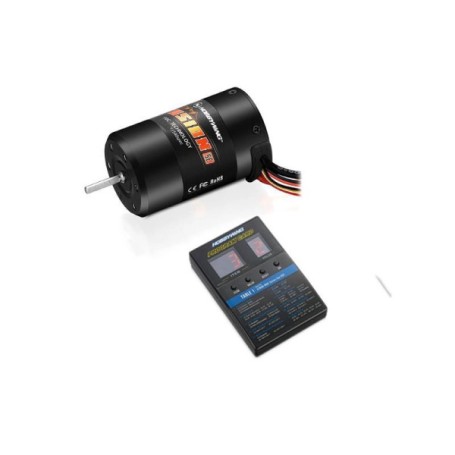

Hobbywing Quicrun Fusion SE Rock Crawler 1200kV + Program Card
In comparison, the SE edition of the regular Quicrun Fusion offers a number of improvements and optimizations that have been made to this very special motor/controller combo in order to continue to make driving as enjoyable as possible. Visually, the design is particularly striking, although it is atypical for a Fusion combo, but it is certainly appealing.
Scope of delivery:
- 1x Quicrun Fusion SE 1200kV
- 1x LED programming card
Of course, space in the car is often very limited and there is little room to properly accommodate the various cables and other electronic items. But the Quicrun Fusion SE is just as big as a typical 550 engine and with a weight of just 201g, you don't notice that the motor and controller have been combined. Thanks to the intelligent torque and speed control, a crawler can adapt to any situation without any problems. This combo is supported by an excellent waterproof and dustproof casing. So the fun really knows no bounds. Even the electronic switch is protected accordingly. The technology used is called FOC (Field-Oriented-Control) and is responsible for this great steering feel. The sinusoidal motor control keeps the controller and motor cooler and achieves silky smooth, quiet motor operation.
Features:
- 2in1: Motor and controller combined in one
- At just under 58mm long, now even smaller, more compact and lighter than its predecessor
- Strong torque even at slow speeds
- Waterproof and dustproof
- Strong built-in BEC with voltage switching function
- Various safety mechanisms against: undervoltage, overheating, gas loss, etc.
- Programmable with the LED programming box
Technical data:
- Type: Brushless FOC
- Sensored
- Current (permanent): 40A
- Number of cells: 2s-3s LiPo, 6s-9s NiMH
- BEC: 6V/7.4V with 4A (switch mode)
- Poles: 4
- Speed: 1200kV
- Outer diameter: 36mm
- Length: 58.1mm
- Shaft diameter: 3.175mm
- Shaft length: 16.5mm
- Waterproof: Yes, according to IP-67 standard
- Programming: - compatible with the LED Programming box
- Independent programming interface on the switch
- Weight: 201g
- Use: 1/10 crawler
