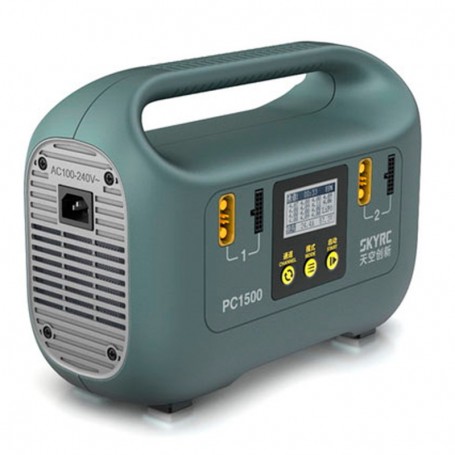

Charger SkyRC PC1500 LiPo - LiHV 14S 25A 1500W
PC1500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect two batteries at the same time. The charger's maximum output power is up to 1500W, with three modes of Fast(Fast Charge)/Charge(Slow Charge)/Storage. Batteries with customized CAN communication can recognize the charger instantly. Charging operation is convenient and straightforward, and better user experience is delivered.
Intuitive Operation Interface
Routine charging is made easy by the simple and intuitive interface with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started.
LCD Display
Real-time charging data at a glance! During the charging process, the display screen displays charging time, battery power percentage, and every single cell's voltage in real-time.
High Performance with Dual Channels
With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.
Compatibility of CAN
PC1500 charger is with built-industry CAN Bus communication. Smart batteries and lithium batteries with balance ports can be charged.
Better Protection with Conformal Coating
Anti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work.
Multiple Protection:
- Short Circuit Protection
- Reverse Polarity Protection
- Over-temperature Protection
- Customers can rest assured of our quality safety and reliabilit
Specifications:
- Material: Plastic (Flame Retardant PC-ABS)
- Size: 294 x 136 x 212mm
- Weight: 4.2Kg
- Power Supply: AC Input 100-240V
- Charging Power: 1500W
- Battery Type: Lithium Battery
- LiPo Battery Cells: 12S/14S
- LiHV Battery Cells: 12S
- Fast Charge Current: 25A
- Slow Charge Current: 25A
- Discharge Power：60W
- Charging Mode：Fast charge, Slow, Storage
- Working Temperature: 0º-40º
- Working Humidity: 0%-75%
- Storage Temperature: -10º-70º
- Storage Humidity: 0%-75%
